68 km/h

Top Speed

120 km

Range

3000W

Peak Power

range

High-Density Lithium Batteries: 100Ah battery provide a range of up to 100km, extending your journey.

72 V 100 Ah

Battery

CHARGER

Vehicle-mounted charging，with a time of 6 to 8 hours. Battery can be removed.

power

Powerful 3000W Motor:

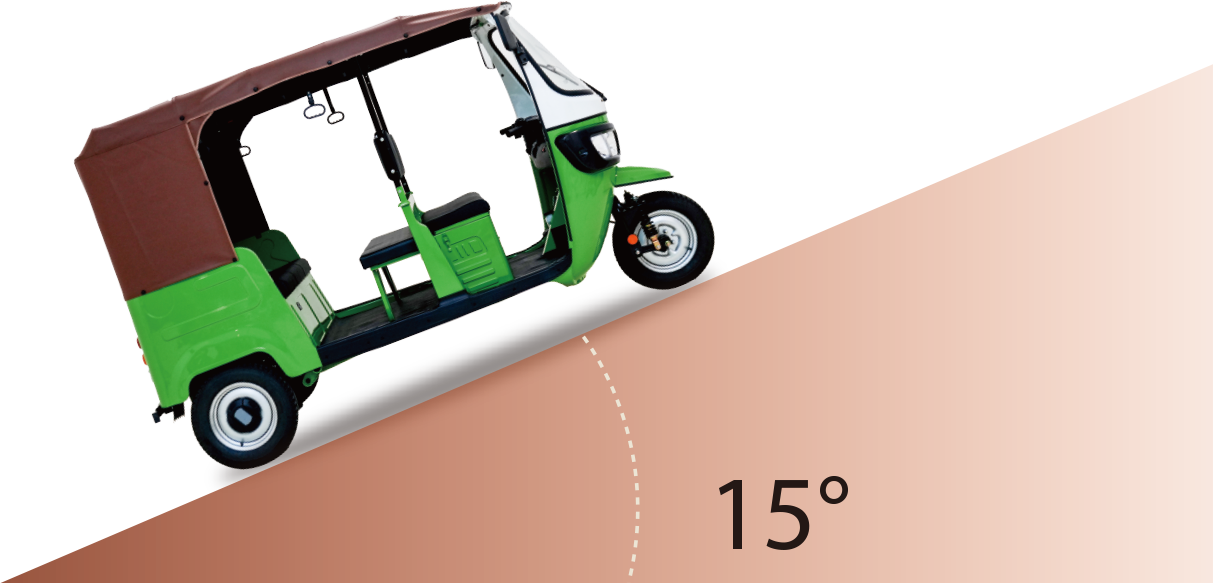

Boosts climbing angle up to 15°, making it adaptable to a wider range of terrains.

3000 W

Rated Power

15°

Climbing Angle

More
user-friendly

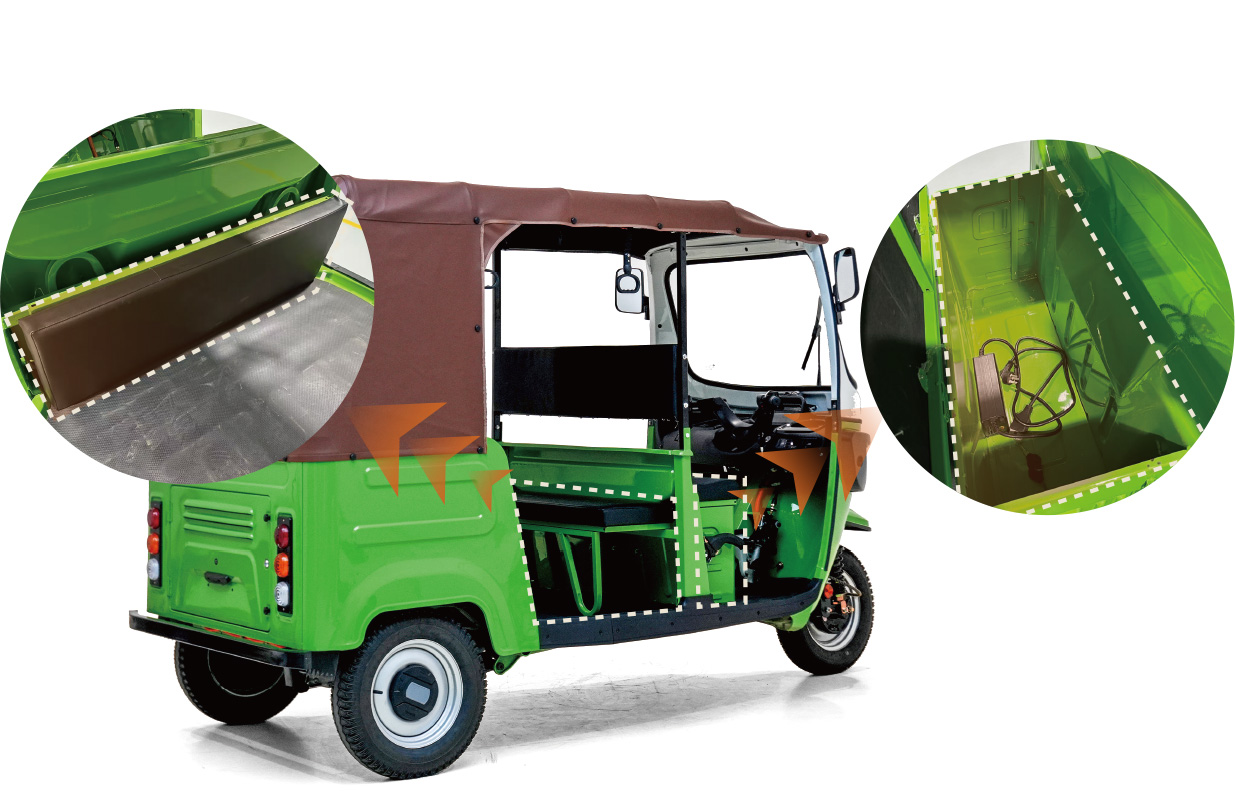

The rear seats feature a foldable design, while the driver's seat offers oversized storage compartments.

Specification

DIMENSION

L

3000mm
W 1250mm
H 1800mm
POWERTRAIN
Number of seat rows Two rows
Number of passengers 7 Seats
Wheelbase 2280 mm
Rear Track 1100 mm
Min.Ground Clearance 170 mm
Curb Weight 380 kg
Battery Weight 60 kg
Max.Load Weight 530 kg
Top Speed 68 km/h
Max range 120 km
Minimum turning radius 4 m
Braking Distance 8 m
Charging Time 6-8 h
CONFIGURATION
Motor Rated Power 3000w
Controller

Vector Control
Battery

72V/100Ah
Tire

400-12 (F/R)

Windshield Wiper

Single
Braking F&R Oil Hub Brakes
Steering Multi-function handlebar
Front Fork Double-arm shock
BallCage Full Suspension
Seat/back cushion Artificial Leather
Multimedia Radio
Awning Iron Frame Tarpaulin
Rear View Mirror Adjustable WAL
Horn Single Horn
Lights LED
Instrument LCD Screen
Charger Optional
