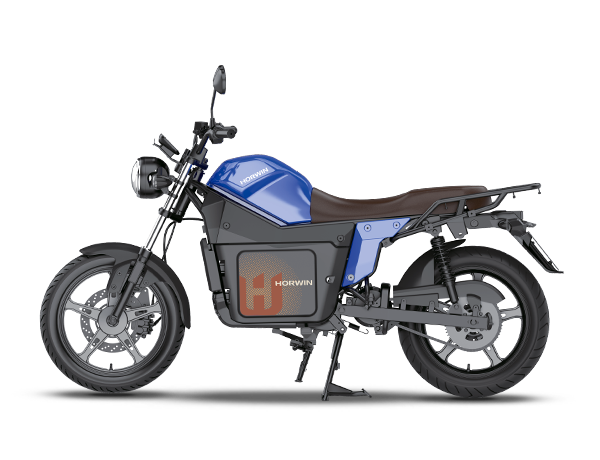

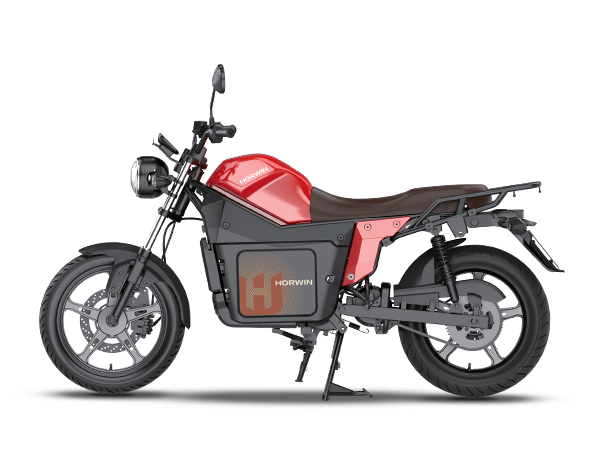

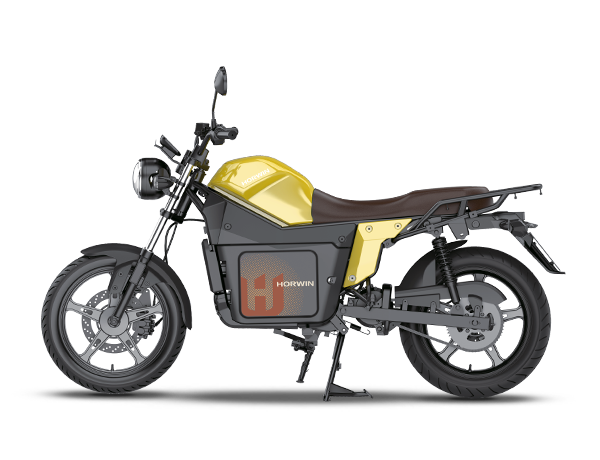

CD SERIES

100% ELECTRIC MOTORCYCLE

Commander, Come To Conquer

120km/h

Top Speed

120 km

Range

*2 Batteries

12 KW

Max Power

Multi-Tier Customization Ecosystem

Decals | Colors | Battery  | Brakes

Full-Vehicle Engineering + Smart System Integration + Turnkey Packages (MOQ Required)

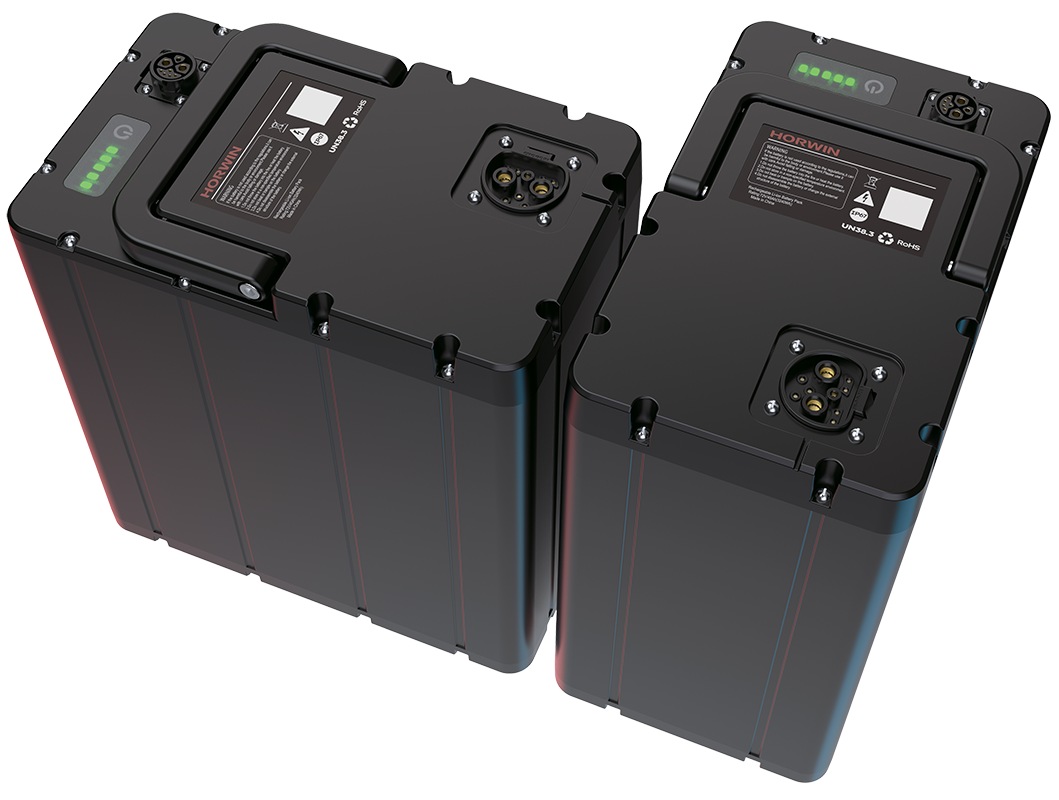

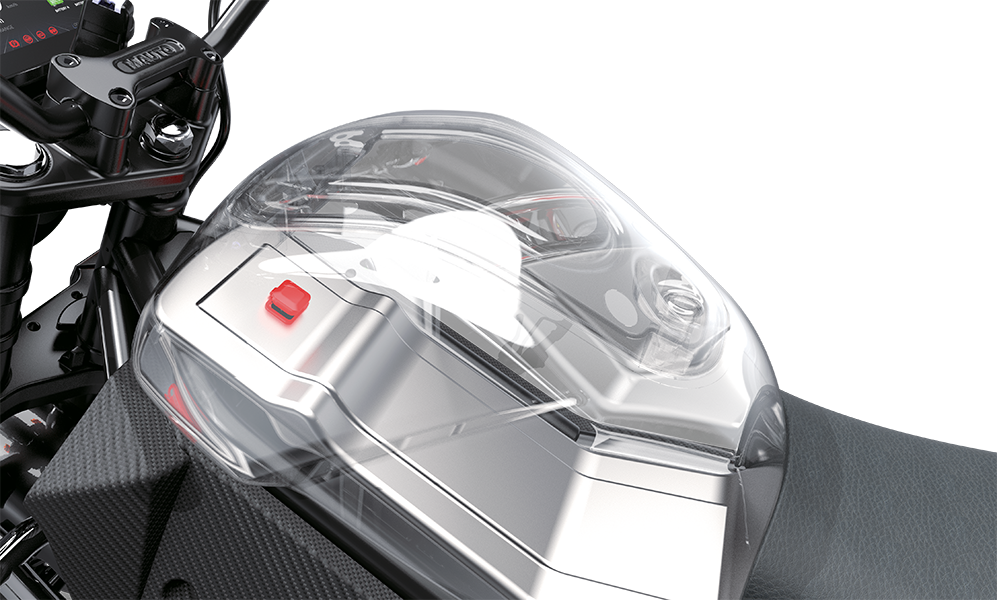

Dual battery compartment design

2 battery types & 5 specifications available

We have designed a flexible battery solution for CD with upto 72V45AH*2 removable batteries, with automotive grade long lasting Iithium cells for long life The max range is up to 120km，compatible with multiple.

UP TO 72V 45AH*2

Battery

120km

Range

USB charging

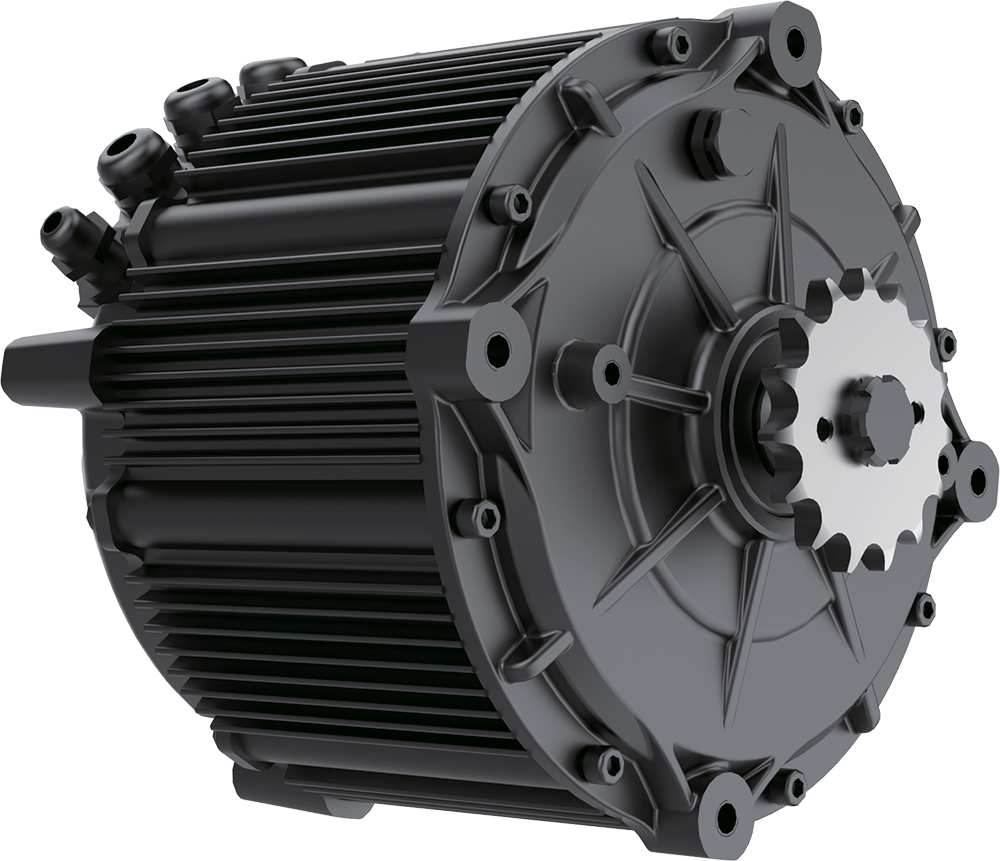

New high-performance motors

CD with Middle drive motor with a Rated Power of 7500W. The top speed can reach 120km/h, and the climbing performance is 26% (single rider).It has programmable energy recuperation (the motor runs in this recuperation mode).

7500W

Rated Power

120Km/h

Top Speed

Conversion Efficiency

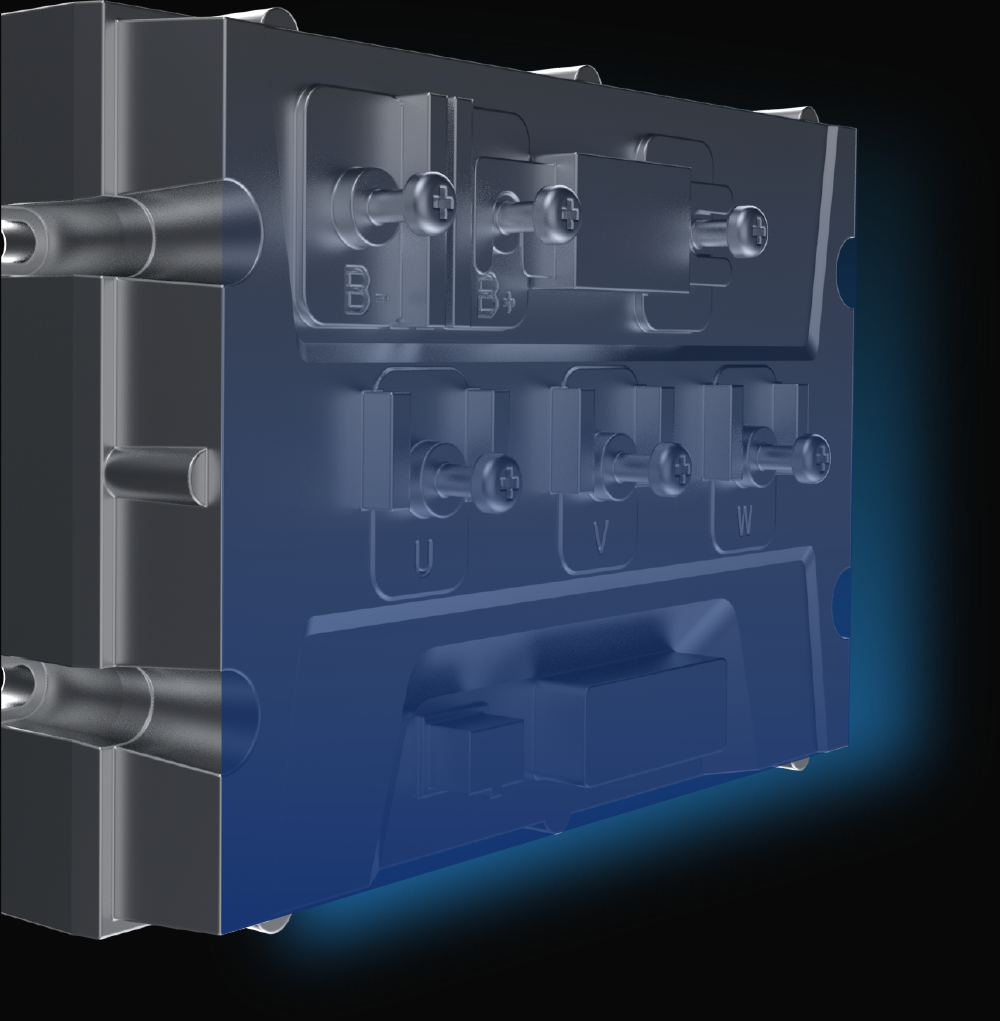

SMART CONTROLLING UNIT (FOC)

CD’s proprietary FOC controllers dynamically manage powerful motors, providing smooth acceleration and an incredible riding experience. Optimized performance conversions up to 90%.

  • FOC
    FOC

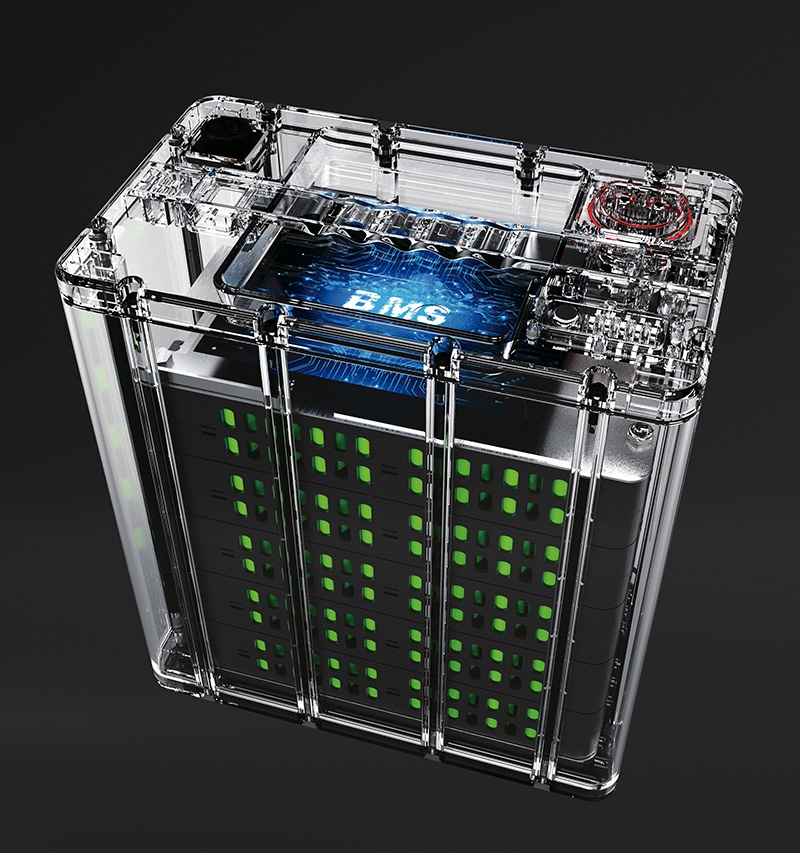

  • BMS

Specification



PERFORMANCE             CD1 SERIES             CD3 SERIES             CD5 SERIES
Colour ●●●●●● ●●●●●● ●●●●●●
Motor TYPE Mid air cooled Mid air cooled Mid air cooled
Max Power 6 KW 8 KW 12 KW
Top Speed 80~90 Km/h 95-105 Km/h 105-120 Km/h
Drive Gear Gear 1/2/3 Gear 1/2/3 Gear 1/2/3
Battery (IOT is optional) LFP 72V 27Ah*2
72V 30Ah*2 72V 45Ah*1 72V 45Ah*1
72V 45Ah*1 (72V 106Ah*1) (72V 106Ah*1)
NCM 72V 36Ah*2 72V 36Ah*2 72V 36Ah*2
72V 45Ah*2 72V 45Ah*2 72V 45Ah*2
Range (under 70% Top speed cruising) 75 KM(72V 27Ah*2)
85 KM(72V 30Ah*2) 70 KM 70 KM
75 KM(72V 45Ah*1) 130 KM 130 KM
100 KM{72V 36Ah*2} 85 KM 85 KM
120 KM(72V 45Ah*2) 105 KM 105 KM
Controller TYPE FOC FOC FOC
Current Power 4.5kW 6 kW 7.5kW
Climbing (rider only) 20°-24° 22°-24° 23°-26°
Reverse Mode 5 km/h max 5 km/h max 5 km/h max
CHASSIS
Dimensions 2105mm X 760mm X 1110m 2105mm X 760mm X 1110mm 2105mm X 760mm X 1110mm
Seat Height 775mm 775mm 775mm
Net Weight 115 kg 116 kg 120 kg
Max load (rider included) 220 kg 220 kg 220kg
Front Rim MT 1.85 x17 MT 1.85 x17 MT 1.85 x17
Rear Rim MT 2.5 x17 MT 2.5 x17 MT 2.5 x17
Front tire 90/90-17 90/90-17 110/80-17
Rear tire 110/80-17 110/80-17 130/70-17
Wheel base 1470 mm 1470 mm 1470 mm
Ground Clearance 185mm 185mm 185mm
Brakes Optional: CBS / Disc / Drum Optional: CBS / Disc / Drum Optional: CBS / Disc / Drum
Storage 8L ( inside the storage tank ) 8L ( inside the storage tank ) 8L ( inside the storage tank )
Equipment optional Front guard, passenger footrest, side box stay,  back rest,wind shield, rear carrier, head cowl Front guard, passenger footrest, side box stay,  back rest,wind shield, rear carrier, head cowl Front guard, passenger footrest, side box stay,  back rest,wind shield, rear carrier, head cowl
ELECTRICAL
Screen LCD 5 in. LCD 5 in.(TFT 5 in. optional) LCD 5 in.(TFT 5 in. optional)
Protocol CAN CAN CAN
Kill switch Side stander Side stander Side stander
Head light LED LED LED
IOT optional optional optional
USB charge yes yes yes
Connector IPX7 IPX7 IPX7
Regenerative braking yes yes yes
Tail light LED LED LED
