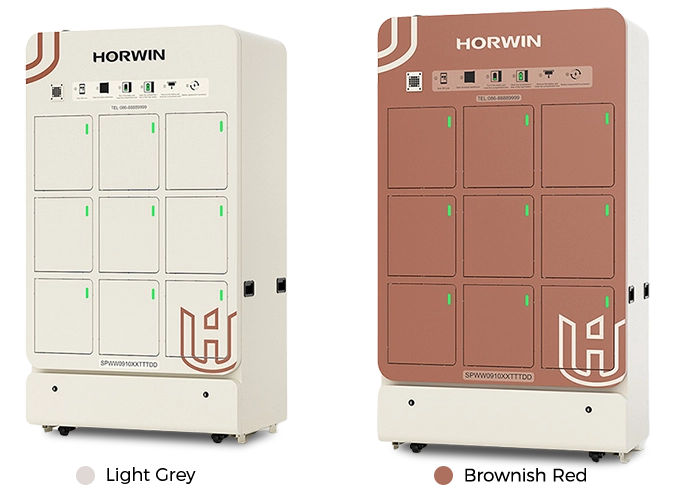

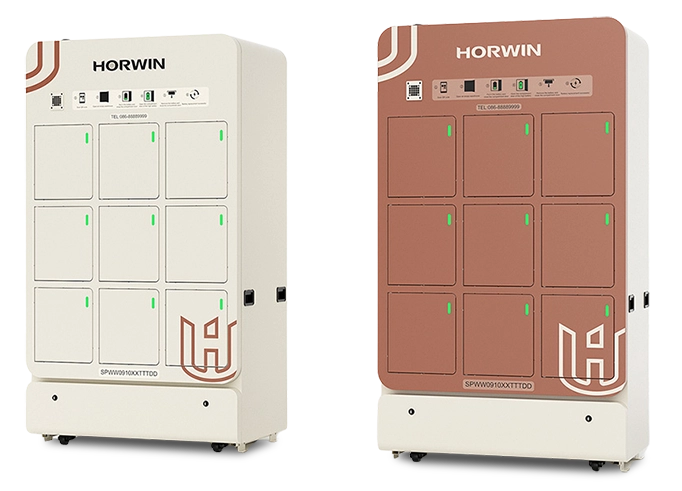

• High-efficient battery swap system for safe, convenient and low-carbon mobility.

    The standard cabinet is equipped with 9 cases and is also available for flexible customization.

Product Advantages

imgi_16_dingzhi

< 2.5 h

CHARGING TIME（36AH）

< 3.0 h

CHARGING TIME（45AH）

imgi_17_Charging_dz
0
mm

LENGTH

0
mm

WIDTH

0
mm

HEIGHT

Product Advantages

imgi_16_dingzhi

< 2.5 h

CHARGING TIME（36AH）

< 3.0 h

CHARGING TIME（45AH）

0
Inch

DISPLAY

0
mm

LENGTH

0
mm

WIDTH

0
mm

HEIGHT

Product Advantages

imgi_16_dingzhi
0
mm

LENGTH

0
mm

WIDTH

0
mm

HEIGHT

More Sizes Options

imgi_16_dingzhi
  • POSITION

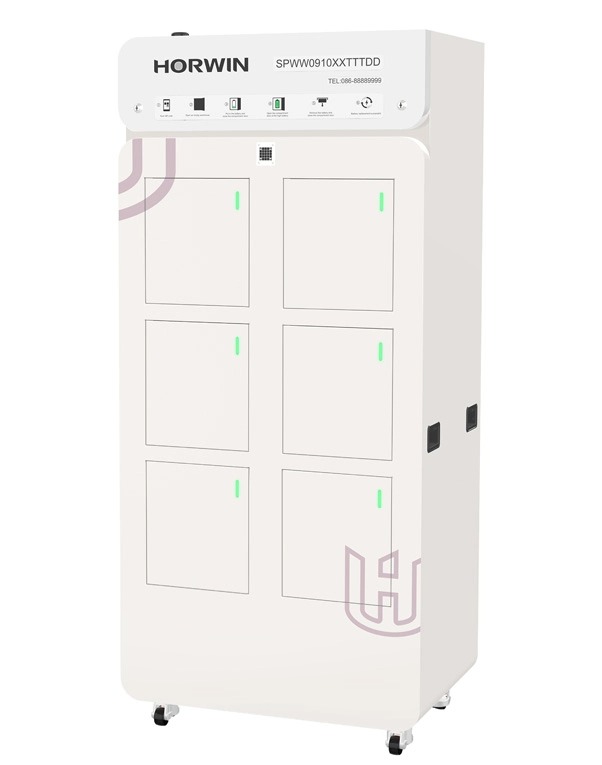

    6 piece
    POSITION
  • POSITION

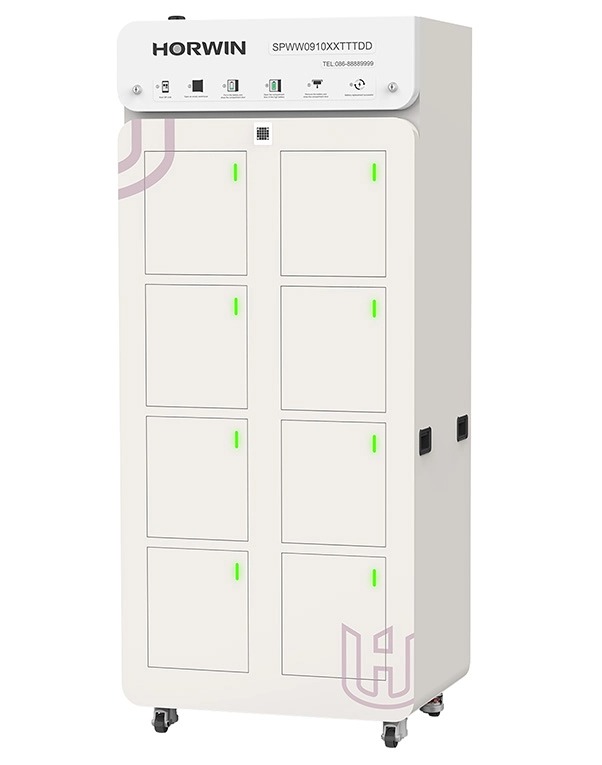

    8 piece
    POSITION
  • POSITION

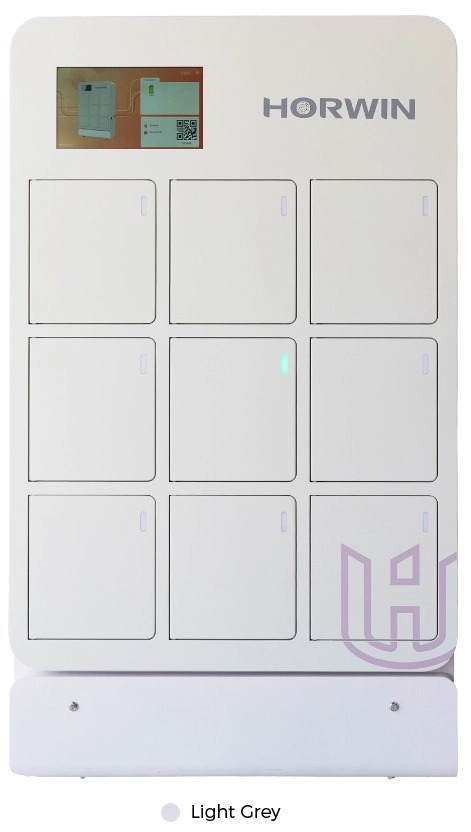

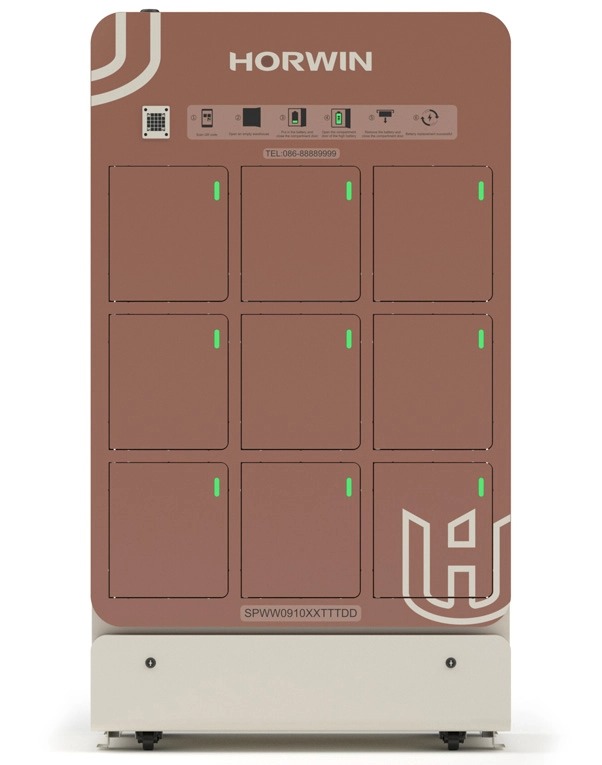

    9 piece
    POSITION

Product Advantages

imgi_16_dingzhi
  • Intelligent battery distribution, automatic handling of abnormal.Bluetooth offline power exchange, support reverse power supply.
    SMART CHARGING / SWITCHING
    Intelligent battery distribution, automatic handling of abnormal.Bluetooth offline power exchange, support reverse power supply.
  • IOT-based intelligent diagnosis, intelligent warning, and intelligent processing.
    IOT TECHNOLOGY
    IOT-based intelligent diagnosis, intelligent warning, and intelligent processing.
  • Independent smoke, temperature, humidity sensor, fire quickly extinguish and cut off the circuit.
    SAFETY PROTECTION
    Independent smoke, temperature, humidity sensor, fire quickly extinguish and cut off the circuit.
  • Reverse battery power supply.
    12V BACKUP POWER
    Reverse battery power supply.
  • A large capacity long-mileage high insertion/removal cycles high waterproof rating.
    BATTERY DURABILITY
    A large capacity long-mileage high insertion/removal cycles high waterproof rating.
  • Easy daily maintenance.
    SUITABLE FOR 220V VOLTAGE
    Easy daily maintenance.
  • Rapidly completing the deployment of IoT communications.Real-time monitoring of operational data.
    RAPID DEPLOYMENT
    Rapidly completing the deployment of IoT communications.Real-time monitoring of operational data.
  • Auto-triggered extinguishing system for overheating scenarios.
    CABINET FIRE PROTECTION
    Auto-triggered extinguishing system for overheating scenarios.
  • Network-independent battery replacement capability.
    OFFLINE BATTERY SWAP
    Network-independent battery replacement capability.

Installation Plan

We will determine the location of the swap stations based on the results of the market research and the factors such as urban planning, traffic flow, power supply, etc., . The following locations will be involved.

Delivery centers and showroom by initial.

Commercial centers/gas stations.

Parking area

*Subject to the actually purchased equipment, the pictures shown here are for reference only.

Product Specification

imgi_16_dingzhi
 ITEM QUANTITY OTHER
  15.0 inch display(optional)   1    O
  Voice module   1    O
  Cabinet control panel   1    O
  Single bin control panel   9    O
  Android tablet   1    O
  Reverse supply board   1    O
  Smart charger   9    1200W
  Smart meter   1    485 can
  Single bin cooling fan   9    O
  Single-bin fire extinguisher   9    Hot aerosol fire extinguisher
  Single compartment door lock   9    O
  Single chamber temperature probe   9    O
  Single bin photoelectric sensor   9    O
  Wifi&4G2-in-1antenna   1    O
  Strong current module   1    Leakage protection,surge,shunt release,etc
  12v switching power supply   1    O
  15v switching power supply   1    O
  12v small battery   1    O
  Cabinet fan   4    Choose between air conditioner/fan
  Refrigeration and air conditioning (optional)   1    600w
  Water sensor   1    O
  Smoke detector   1    O
  Single-bin charging head cable   9    O
  Single chamber light   9    O
