CR SERIES

100% ELECTRIC MOTORCYCLE

Excellent Mobility

120km/h

Top Speed

120 km

Range

*2 Batteries

12 KW

Peak Power

Multi-Tier Customization Ecosystem

Decals | Colors | Battery  | Brakes

Full-Vehicle Engineering + Smart System

Integration + Turnkey Packages (MOQ Required)

The CR Series features a proprietary cradle-frame design for exceptional durability, proven through rigorous bench vibration testing that exceeds industry standards. Blending classic heritage with modern technology, it pairs iridescent painted storage with carbon fiber textured bodywork—delivering a timeless yet contemporary style.

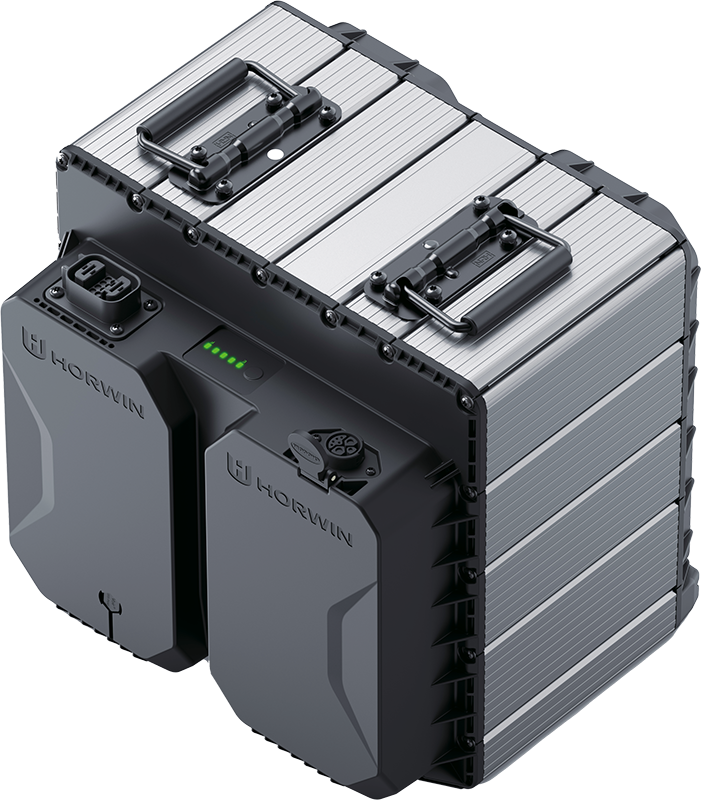

DUAL BATTERY COMPARTMENT DESIGN

2 battery types & 5 specifications available

UP TO 72V 45Ah *2 (NCM)

Battery

120Km

maximum Range

High-Voltage Efficiency

72V 45Ah batteries deliver greater power transmission in less time, maximizing energy efficiency without compromising performance.

Excellent Durability

High-strength carbon steel by over 2 million vibration tests

Large Load Capacity

Up to 150kg (2 riders and 2 batteries).

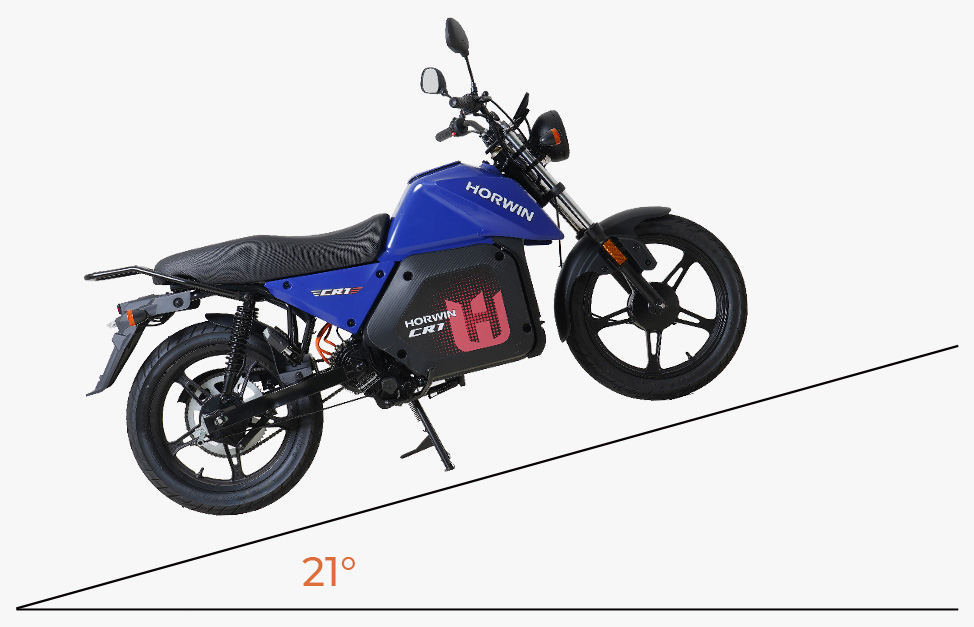

Strong Climbing Ability

Climbing up to 21 degrees.

CR-5

Excellent Durability

  • Minimum ground clearance of 165mm (QBDl).
    Strong Trafficability
    Minimum ground clearance of 165mm (QBDl).
  • Battery and motor controller are equipped with waterproofrating of IP67, while the vehicle equipped with waterproofrating of IP54
    Waterproof
    Battery and motor controller are equipped with waterproofrating of IP67, while the vehicle equipped with waterproofrating of IP54

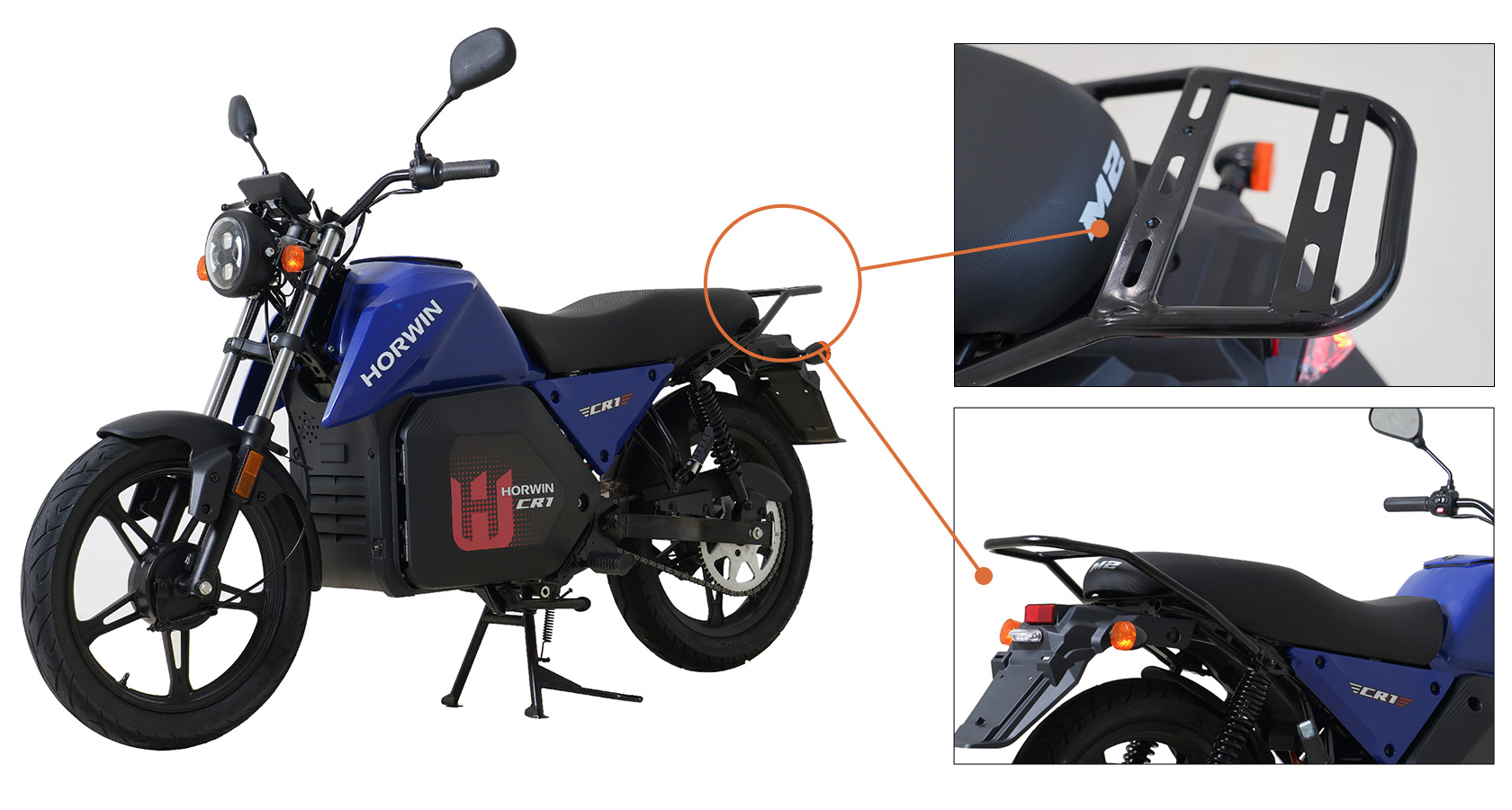

  • Optional accessories like bumper, rear rack, and oversizedrear passenger foot board.
    Various Accessories
    Optional accessories like bumper, rear rack, and oversizedrear passenger foot board.
  • Large and soft seat for long-distance ride.</br>Seat Height: 775mm.
    High Comfor
    Large and soft seat for long-distance ride.
    Seat Height: 775mm.
  • Holds your valuables and riding gear.
    8L Anti-Theft Storage Space
    Holds your valuables and riding gear.

*Depending on the country you are living in, buying electric vehicles is financially supported by many governments, organisations or companies.

Because of this, switching to electric mobility is an absolute win-win-situation.

Specification



PERFORMANCE             CR1 SERIES             CR3 SERIES             CR5 SERIES
Colour ●●●●●● ●●●●●● ●●●●●●
Motor TYPE Mid air cooled Mid air cooled Mid air cooled
Max Power 6 KW 8 KW 12 KW
Top Speed 80~90 Km/h 95-105 Km/h 105-120 Km/h
Drive Gear Gear 1/2/3 Gear 1/2/3 Gear 1/2/3
Battery (IOT is optional) LFP 72V 27Ah*2 72V 27Ah*2
72V 30Ah*2 72V 30Ah*1 72V 45Ah*1
72V 45Ah*1 72V 45Ah*1 (72V 106Ah*1)
NCM 72V 36Ah*2 72V 36Ah*2 72V 36Ah*2
72V 45Ah*2 72V 45Ah*2 72V 45Ah*2
Range (under 70% Top speed cruising) 75 KM(72V 27Ah*2) 70 KM
85 KM(72V 30Ah*2) 80 KM 70 KM
75 KM(72V 45Ah*1) 70 KM 130 KM
100 KM{72V 36Ah*2} 85 KM 85 KM
120 KM(72V 45Ah*2) 105 KM 105 KM
Controller TYPE FOC FOC FOC
Current Power 4.5kW 6 kW 7.5kW
Climbing (rider only) 20°-24° 22°-24° 23°-26°
Reverse Mode 5 km/h max 5 km/h max 5 km/h max
CHASSIS
Dimensions 2105mm X 760mm X 1110m 2105mm X 760mm X 1110mm 2105mm X 760mm X 1110mm
Seat Height 775mm 775mm 775mm
Net Weight 84 kg 87 kg 90 kg
Max load (rider included) 220 kg 220 kg 220kg
Front Rim MT 1.85 x17 MT 1.85 x17 MT 1.85 x17
Rear Rim MT 2.5 x17 MT 2.5 x17 MT 2.5 x17
Front tire 90/90-17 90/90-17 110/80-17
Rear tire 110/80-17 110/80-17 130/70-17
Wheel base 1400 mm 1400 mm 1400 mm
Ground Clearance 185mm 185mm 185mm
Brakes Optional: CBS / Disc / Drum Optional: CBS / Disc / Drum Optional: CBS / Disc / Drum
Storage 8L ( inside the storage tank ) 8L ( inside the storage tank ) 8L ( inside the storage tank )
Equipment optional

Front guard, passenger footrest, wind shield, rear carrier

Front guard, passenger footrest, wind shield, rear carrier, head cowl

Front guard, passenger footrest, wind shield, rear carrier, head cowl
ELECTRICAL
Screen LCD 5 in. LCD 5 in. LCD 5 in.
Protocol CAN CAN CAN
Kill switch Side stander Side stander Side stander
Head light LED LED LED
IOT optional optional optional
USB charge yes yes yes
Connector IPX6 IPX6 IPX6
Regenerative braking yes yes yes
Tail light LED LED LED
