95km/h

Top Speed

150 km

Range

*2 Batteries

6.3 KW

Peak Power

40 KG

Maximum Load

Customized Decals

Front Rack

Color Customization

Left and right backpack racks

Customization of vehicle brand logo

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

HIGHLY EFFICIENT & ECONOMICAL

The centre motor generates 6.2 kW of power at a top speed of 95 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

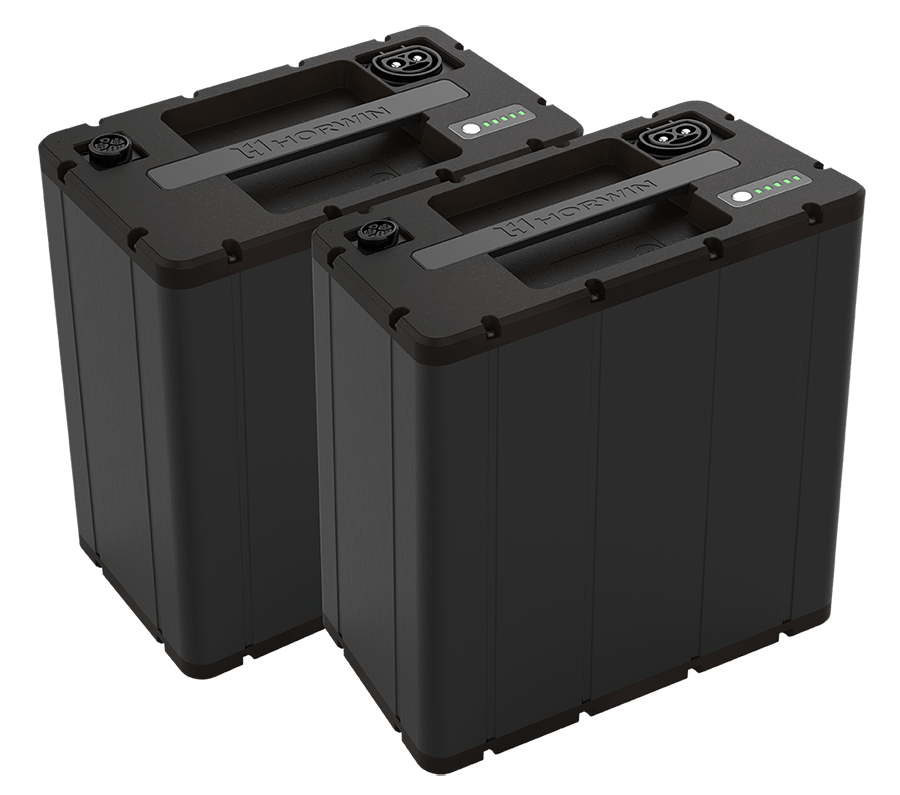

IN DOUBLE PACK

With an optional second battery, the range can be up to 161 km.

Maximum Load

The luggage carrier is reinforced, rustproof and can carry a load of up to 40 kg. This offers the possibility to mount rear boxes with a maximum capacity of 200 litres.

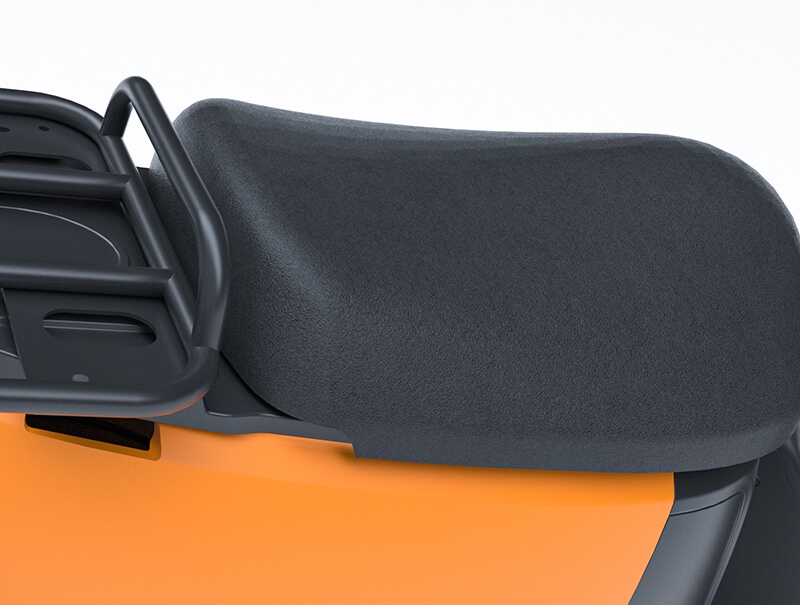

  • The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.
    Big seat cushion
    The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.

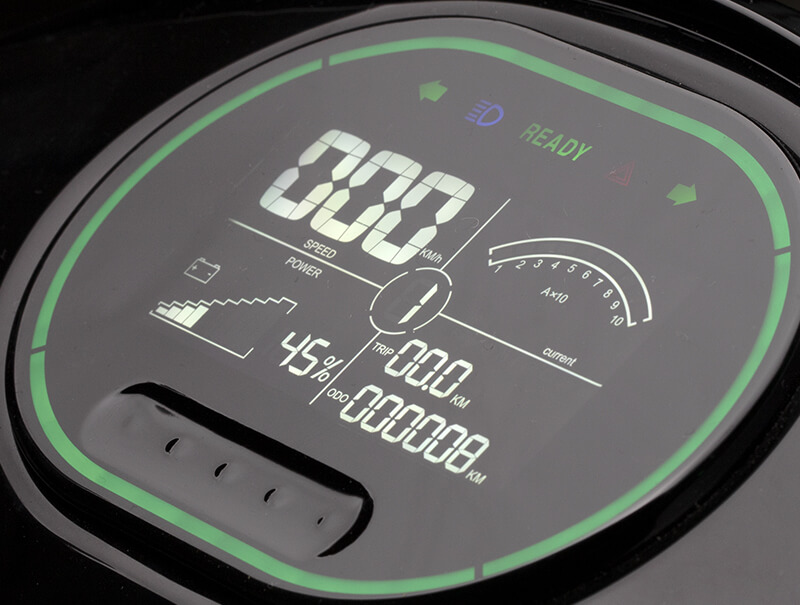

  • The EK3DS can be started with a swipe of the finger on the display. The display also shows all the necessary information that is importantduring the journey.
    Intelligent display
    The EK3DS can be started with a swipe of the finger on the display. The display also shows all the necessary information that is importantduring the journey.

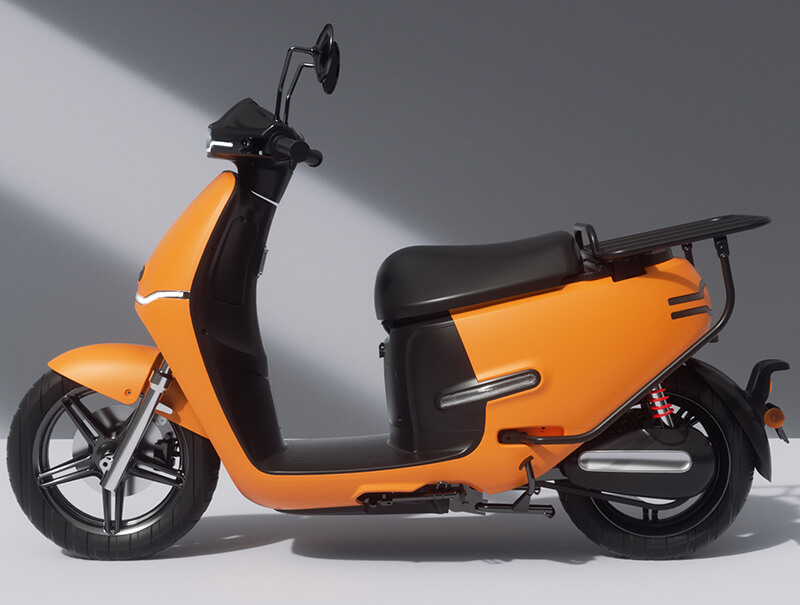

  • The large foot board and wide seat are ergonomically designed. Upper body and legs are relaxed. This means that the EK3DS offers a more comfortable riding experience.
    Ingenious space concept
    The large foot board and wide seat are ergonomically designed. Upper body and legs are relaxed. This means that the EK3DS offers a more comfortable riding experience.

Specification

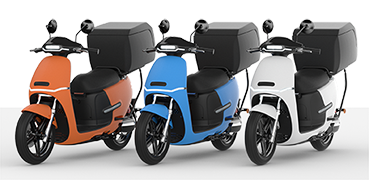

EK1DS

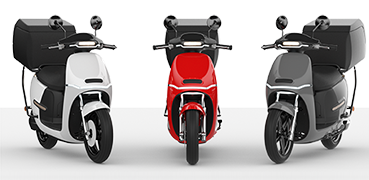

EK3DS

PERFORMANCE EK1 DS EK3 DS
Top Speed 45km/h 95km/h
Range 166km(with 2 batteries) 150km(with 2 batteries)
DIMENSION
L*W*H 1900mm*690mm *1130mm 1900mm*690mm *1130mm
Saddle Height 780mm 780mm
Ground Clearance 125mm 125mm
Wheelbase 1310mm 1310mm
Weight(G.W) 92kg(without battery) 103kg(without battery)
POWERTRAIN
Motor Hub Motor Mid Motor
Controller FOC
Max Power 3.0kW 6.3kW
Continue Rated Power 2.0kW 4.0kW
Battery 72V,36Ah(optional with second battery) 72V,36Ah*2
Charging Time(8A) ≈4.5h ≈4.5h*2
Ride Mode 1/2/3/R 1/2/3/R
CHASSIS
Brake System Disc Brake CBS+disc Brakes
Wheels Tire 100/80 R14 Tire 100/80 R14
110/70 R13 110/70 R13
Rim Aluminium Alloy Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm GPS+Transaction Alarm
Touch-start Display
All-around LED Lights
Keyless Go

90km/h

Top Speed

140 km

Range

*2 Batteries

6.3 KW

Peak Power

40 KG

Maximum Load

Customized Decals

Front Rack

Color Customization

Left and right backpack racks

Customization of vehicle brand logo

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

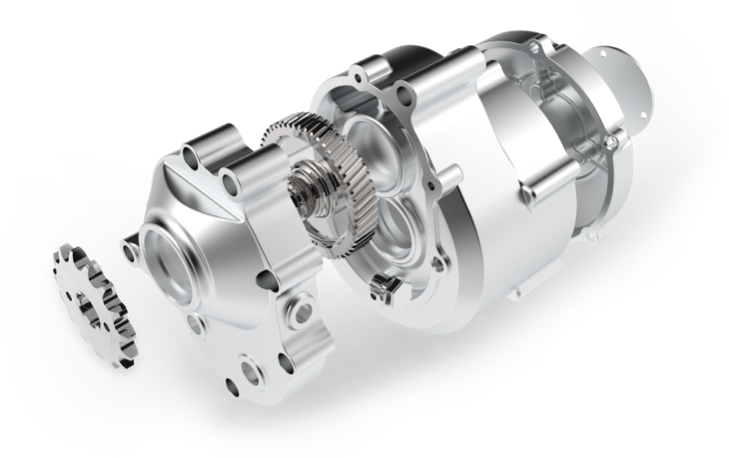

POWERFUL CENTRE MOTOR

The top speed of 90 km/h guarantees fast processing of your delivery orders.

COMFORTABLE HANDLING

The range is up to 140 km with an optional second battery. The keyless start of the vehicle is another highlight and simplifies the handling of the SK3 DS.

Maximum Load

The luggage carrier is reinforced, rustproof and can carry a load of up to 40 kg. This offers the possibility to mount rear boxes with a maximum capacity of 200 litres.

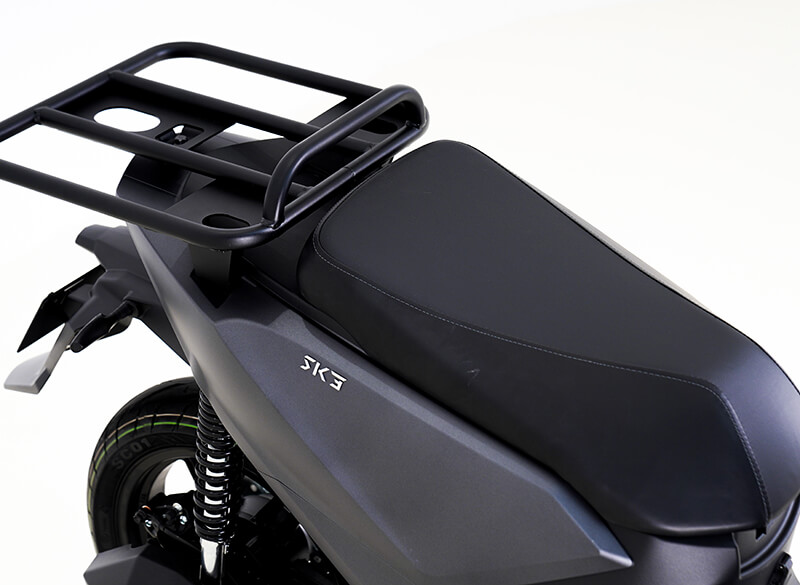

  • The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.
    Big seat cushion
    The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.

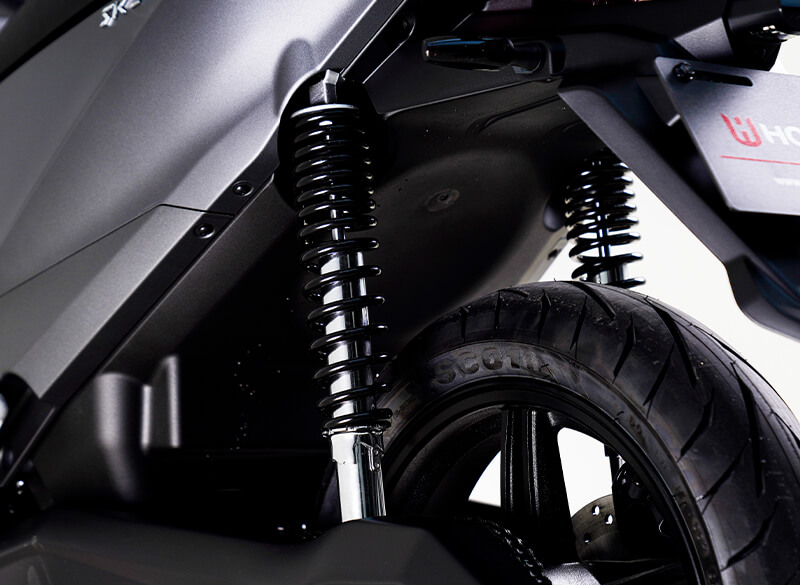

  • Ergonomically adjusted dimensions guarantee perfect seating comfort. Hydraulic shock absorbers provide an excellent riding experience.
    Optimal dimensions
    Ergonomically adjusted dimensions guarantee perfect seating comfort. Hydraulic shock absorbers provide an excellent riding experience.

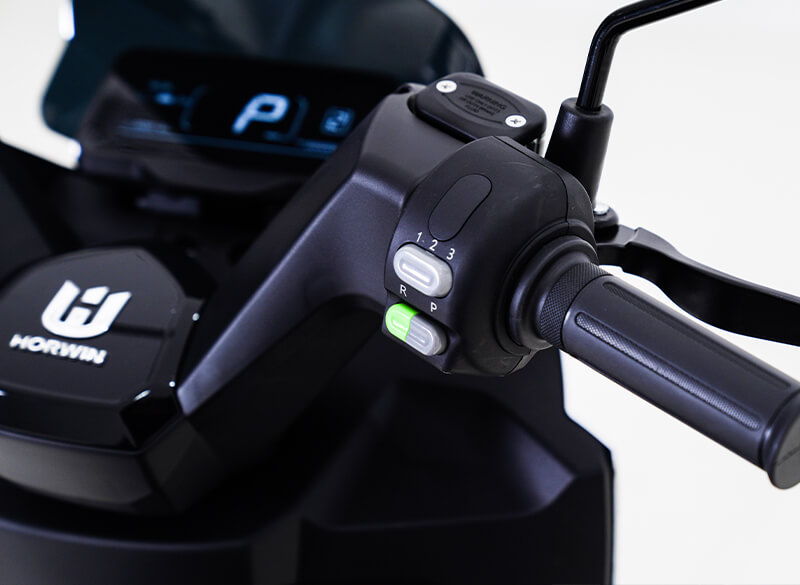

  • The keyless start, demonstrates your distinguished identity as the owner of the vehicle.
    Keyless start
    The keyless start, demonstrates your distinguished identity as the owner of the vehicle.

Specification

PERFORMANCE SK1 DS SK3 DS
Top Speed 45km/h 90km/h
Range 90km(with 40 kph) 140km(with 40 kph)
DIMENSION
L*W*H 1920mm*720mm *1150mm 1920mm*720mm *1150mm
Saddle Height 780mm 780mm
Ground Clearance 132mm 132mm
Wheelbase 1290mm 1290mm
Weight(G.W) 85kg(without battery) 94kg(without battery)
POWERTRAIN
Motor Hub Motor Mid Motor
Controller FOC
Max Power 3.0kW 4.0kW
Continue Rated Power 2.0kW 6.3kW
Battery 72V,36Ah(optional with second battery) 72V,36Ah*2
Charging Time(8A) ≈4.5h ≈5.5h*2
Ride Mode 1/2/3/R 1/2/3/R
CHASSIS
Brake System Disc Brake CBS+disc Brakes
Wheels Tire 100/80 R14 Tire 100/80 R14
110/70 R13 110/70 R13
Rim Aluminium Alloy Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm GPS+Transaction Alarm
Screen LED TFT
All-around LED Lights
Y-cable
